Display Protection & Retained Functional Films

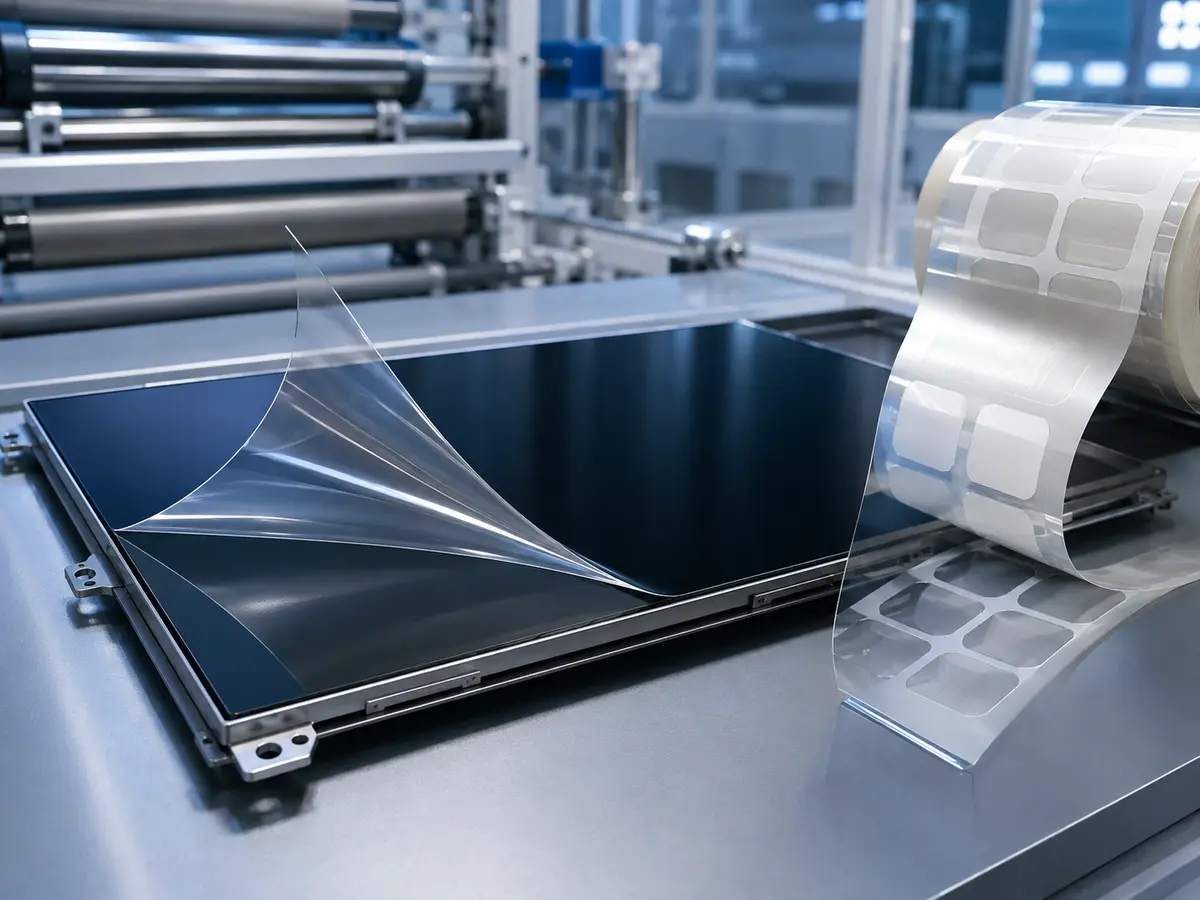

Temporary protection for polarizers and displays, retained screen-protector, anti-splinter and decorative films, and PCR-PET release liners. Select the construction by its optical function, bonding interface and intended removal point.
What the material stack contains.
Read the layers in functional order; the exact construction remains grade-specific.
- 01Optical or recycled-content PET carrier selected by thickness and color
- 02Silicone, PU, acrylic, OCA or release coating matched to the interface
- 03Optional hardcoat, antistatic treatment, air-venting texture or decorative primer
- 04Release liner and removable protection layers defined by the converting sequence
Named grades for technical selection.
Each ECLEAR model identifies a distinct material role and construction. Manufacturing cross-references remain controlled in the ECLEAR product master for traceability.
50 / 50 records
ECLEAR modelProduct / roleConstruction / typical windowApplications
EC-PL-101Product grade
Antistatic Polarizer Shipping Protection FilmReference · confirm data
38 μm PET / 15 μm PSA / 25 μm release liner53 μm reported functional-film thickness (excluding the separate release liner); transmittance 90.12%; haze 2.19%; peel table 2.56 g/25 mm; adhesive and outer surfaces 10^8–10^10 Ω. Data confirmation required: separate peel curves show 7.4 and 3.8 g/25 mm averages on two polarizers
Temporary shipment protection for polarizers and qualified AG or AR surfaces
EC-PT-RL-101Product grade
25 µm Transparent PCR-PET Release Liner — <=5 gf/in release · R2 construction confirmationSpecified grade
25 µm transparent PCR-PET / release coatingRelease force <=5 gf/in; typical source value, approved ECLEAR TDS governs
Adhesive converting, liner exchange and sustainable release applications
25 micron PCR PET release liner<=5 gf/in release film
EC-PT-RL-102Product grade
25 µm Transparent PCR-PET Release Liner — 5-15 gf/in release · R2 construction confirmationSpecified grade
25 µm transparent PCR-PET / release coatingRelease force 5-15 gf/in; typical source value, approved ECLEAR TDS governs
Adhesive converting, liner exchange and sustainable release applications
25 micron PCR PET release liner5-15 gf/in release film
EC-PT-RL-103Product grade
25 µm Transparent PCR-PET Release Liner — 18-30 gf/in release · R2 construction confirmationSpecified grade
25 µm transparent PCR-PET / release coatingRelease force 18-30 gf/in; typical source value, approved ECLEAR TDS governs
Adhesive converting, liner exchange and sustainable release applications
25 micron PCR PET release liner18-30 gf/in release film
EC-PT-RL-104Product grade
25 µm Transparent PCR-PET Release Liner — 30-50 gf/in release · R2 construction confirmationSpecified grade
25 µm transparent PCR-PET / release coatingRelease force 30-50 gf/in; typical source value, approved ECLEAR TDS governs
Adhesive converting, liner exchange and sustainable release applications
25 micron PCR PET release liner30-50 gf/in release film
EC-PT-RL-105Product grade
25 µm Transparent PCR-PET Release Liner — 40-60 gf/in release · R2 construction confirmationSpecified grade
25 µm transparent PCR-PET / release coatingRelease force 40-60 gf/in; typical source value, approved ECLEAR TDS governs
Adhesive converting, liner exchange and sustainable release applications
25 micron PCR PET release liner40-60 gf/in release film
EC-PT-RL-111Product grade
38 µm Transparent PCR-PET Release Liner — <=5 gf/in releaseSpecified grade
38 µm transparent PCR-PET / release coatingRelease force <=5 gf/in; typical source value, approved ECLEAR TDS governs
Adhesive converting, liner exchange and sustainable release applications
38 micron PCR PET release liner<=5 gf/in release film
EC-PT-RL-112Product grade
38 µm Transparent PCR-PET Release Liner — 5-15 gf/in releaseSpecified grade
38 µm transparent PCR-PET / release coatingRelease force 5-15 gf/in; typical source value, approved ECLEAR TDS governs
Adhesive converting, liner exchange and sustainable release applications
38 micron PCR PET release liner5-15 gf/in release film
EC-PT-RL-113Product grade
38 µm Transparent PCR-PET Release Liner — 18-30 gf/in releaseSpecified grade
38 µm transparent PCR-PET / release coatingRelease force 18-30 gf/in; typical source value, approved ECLEAR TDS governs
Adhesive converting, liner exchange and sustainable release applications
38 micron PCR PET release liner18-30 gf/in release film
EC-PT-RL-114Product grade
38 µm Transparent PCR-PET Release Liner — 30-50 gf/in releaseSpecified grade
38 µm transparent PCR-PET / release coatingRelease force 30-50 gf/in; typical source value, approved ECLEAR TDS governs
Adhesive converting, liner exchange and sustainable release applications
38 micron PCR PET release liner30-50 gf/in release film
EC-PT-RL-115Product grade
38 µm Transparent PCR-PET Release Liner — 40-60 gf/in releaseSpecified grade
38 µm transparent PCR-PET / release coatingRelease force 40-60 gf/in; typical source value, approved ECLEAR TDS governs
Adhesive converting, liner exchange and sustainable release applications
38 micron PCR PET release liner40-60 gf/in release film
EC-PT-RL-121Product grade
50 µm Transparent PCR-PET Release Liner — <=5 gf/in releaseSpecified grade
50 µm transparent PCR-PET / release coatingRelease force <=5 gf/in; typical source value, approved ECLEAR TDS governs
Adhesive converting, liner exchange and sustainable release applications
50 micron PCR PET release liner<=5 gf/in release film
EC-PT-RL-122Product grade
50 µm Transparent PCR-PET Release Liner — <=5 gf/in release · R2 construction confirmationReference · confirm data
50 µm transparent PCR-PET / release coatingRelease force <=5 gf/in; R2 construction not disclosed; typical source value, approved ECLEAR TDS governs
Adhesive converting, liner exchange and sustainable release applications
EC-PT-RL-123Product grade
50 µm Transparent PCR-PET Release Liner — 5-15 gf/in releaseSpecified grade
50 µm transparent PCR-PET / release coatingRelease force 5-15 gf/in; typical source value, approved ECLEAR TDS governs
Adhesive converting, liner exchange and sustainable release applications
50 micron PCR PET release liner5-15 gf/in release film
EC-PT-RL-124Product grade
50 µm Transparent PCR-PET Release Liner — 18-30 gf/in releaseSpecified grade
50 µm transparent PCR-PET / release coatingRelease force 18-30 gf/in; typical source value, approved ECLEAR TDS governs
Adhesive converting, liner exchange and sustainable release applications
50 micron PCR PET release liner18-30 gf/in release film
EC-PT-RL-125Product grade
50 µm Transparent PCR-PET Release Liner — 30-50 gf/in releaseSpecified grade
50 µm transparent PCR-PET / release coatingRelease force 30-50 gf/in; typical source value, approved ECLEAR TDS governs
Adhesive converting, liner exchange and sustainable release applications
50 micron PCR PET release liner30-50 gf/in release film
EC-PT-RL-126Product grade
50 µm Transparent PCR-PET Release Liner — 40-60 gf/in releaseSpecified grade
50 µm transparent PCR-PET / release coatingRelease force 40-60 gf/in; typical source value, approved ECLEAR TDS governs
Adhesive converting, liner exchange and sustainable release applications
50 micron PCR PET release liner40-60 gf/in release film
EC-PT-RL-131Product grade
75 µm Transparent PCR-PET Release Liner — <=5 gf/in releaseSpecified grade
75 µm transparent PCR-PET / release coatingRelease force <=5 gf/in; typical source value, approved ECLEAR TDS governs
Adhesive converting, liner exchange and sustainable release applications
75 micron PCR PET release liner<=5 gf/in release film
EC-PT-RL-132Product grade
75 µm Transparent PCR-PET Release Liner — 5-15 gf/in releaseSpecified grade
75 µm transparent PCR-PET / release coatingRelease force 5-15 gf/in; typical source value, approved ECLEAR TDS governs
Adhesive converting, liner exchange and sustainable release applications
75 micron PCR PET release liner5-15 gf/in release film
EC-PT-RL-133Product grade
75 µm Transparent PCR-PET Release Liner — 18-30 gf/in releaseSpecified grade
75 µm transparent PCR-PET / release coatingRelease force 18-30 gf/in; typical source value, approved ECLEAR TDS governs
Adhesive converting, liner exchange and sustainable release applications
75 micron PCR PET release liner18-30 gf/in release film
EC-PT-RL-134Product grade
75 µm Transparent PCR-PET Release Liner — 30-50 gf/in releaseSpecified grade
75 µm transparent PCR-PET / release coatingRelease force 30-50 gf/in; typical source value, approved ECLEAR TDS governs
Adhesive converting, liner exchange and sustainable release applications
75 micron PCR PET release liner30-50 gf/in release film
EC-PT-RL-135Product grade
75 µm Transparent PCR-PET Release Liner — 40-60 gf/in releaseSpecified grade
75 µm transparent PCR-PET / release coatingRelease force 40-60 gf/in; typical source value, approved ECLEAR TDS governs
Adhesive converting, liner exchange and sustainable release applications
75 micron PCR PET release liner40-60 gf/in release film
EC-PT-RL-141Product grade
100 µm Transparent PCR-PET Release Liner — <=5 gf/in releaseReference · confirm data
100 µm transparent PCR-PET / release coatingRelease force <=5 gf/in; grade spelling requires confirmation; typical source value, approved ECLEAR TDS governs
Adhesive converting, liner exchange and sustainable release applications
EC-PT-RL-142Product grade
100 µm Transparent PCR-PET Release Liner — 5-15 gf/in releaseSpecified grade
100 µm transparent PCR-PET / release coatingRelease force 5-15 gf/in; typical source value, approved ECLEAR TDS governs
Adhesive converting, liner exchange and sustainable release applications
100 micron PCR PET release liner5-15 gf/in release film
EC-PT-RL-143Product grade
100 µm Transparent PCR-PET Release Liner — 18-30 gf/in releaseSpecified grade
100 µm transparent PCR-PET / release coatingRelease force 18-30 gf/in; typical source value, approved ECLEAR TDS governs
Adhesive converting, liner exchange and sustainable release applications
100 micron PCR PET release liner18-30 gf/in release film
EC-PT-RL-144Product grade
100 µm Transparent PCR-PET Release Liner — 30-50 gf/in releaseSpecified grade
100 µm transparent PCR-PET / release coatingRelease force 30-50 gf/in; typical source value, approved ECLEAR TDS governs
Adhesive converting, liner exchange and sustainable release applications
100 micron PCR PET release liner30-50 gf/in release film
EC-PT-RL-145Product grade
100 µm Transparent PCR-PET Release Liner — 40-60 gf/in releaseSpecified grade
100 µm transparent PCR-PET / release coatingRelease force 40-60 gf/in; typical source value, approved ECLEAR TDS governs
Adhesive converting, liner exchange and sustainable release applications
100 micron PCR PET release liner40-60 gf/in release film
EC-PT-RL-201Product grade
50 µm Blue PCR-PET Release Liner — <=5 gf/in releaseSpecified grade
50 µm blue PCR-PET / release coatingRelease force <=5 gf/in; typical source value, approved ECLEAR TDS governs
Adhesive converting, liner exchange and sustainable release applications
50 micron PCR PET release liner<=5 gf/in release film
EC-PT-RL-202Product grade
50 µm Blue PCR-PET Release Liner — 5-15 gf/in releaseSpecified grade
50 µm blue PCR-PET / release coatingRelease force 5-15 gf/in; typical source value, approved ECLEAR TDS governs
Adhesive converting, liner exchange and sustainable release applications
50 micron PCR PET release liner5-15 gf/in release film
EC-PT-RL-203Product grade
50 µm Blue PCR-PET Release Liner — 18-30 gf/in releaseSpecified grade
50 µm blue PCR-PET / release coatingRelease force 18-30 gf/in; typical source value, approved ECLEAR TDS governs
Adhesive converting, liner exchange and sustainable release applications
50 micron PCR PET release liner18-30 gf/in release film
EC-PT-RL-204Product grade
50 µm Blue PCR-PET Release Liner — 30-50 gf/in releaseSpecified grade
50 µm blue PCR-PET / release coatingRelease force 30-50 gf/in; typical source value, approved ECLEAR TDS governs
Adhesive converting, liner exchange and sustainable release applications
50 micron PCR PET release liner30-50 gf/in release film
EC-PT-RL-205Product grade
50 µm Blue PCR-PET Release Liner — 40-60 gf/in releaseSpecified grade
50 µm blue PCR-PET / release coatingRelease force 40-60 gf/in; typical source value, approved ECLEAR TDS governs
Adhesive converting, liner exchange and sustainable release applications
50 micron PCR PET release liner40-60 gf/in release film
EC-PT-RL-211Product grade
75 µm Blue PCR-PET Release Liner — <=5 gf/in releaseSpecified grade
75 µm blue PCR-PET / release coatingRelease force <=5 gf/in; typical source value, approved ECLEAR TDS governs
Adhesive converting, liner exchange and sustainable release applications
75 micron PCR PET release liner<=5 gf/in release film
EC-PT-RL-212Product grade
75 µm Blue PCR-PET Release Liner — 5-15 gf/in releaseSpecified grade
75 µm blue PCR-PET / release coatingRelease force 5-15 gf/in; typical source value, approved ECLEAR TDS governs
Adhesive converting, liner exchange and sustainable release applications
75 micron PCR PET release liner5-15 gf/in release film
EC-PT-RL-213Product grade
75 µm Blue PCR-PET Release Liner — 18-30 gf/in releaseSpecified grade
75 µm blue PCR-PET / release coatingRelease force 18-30 gf/in; typical source value, approved ECLEAR TDS governs
Adhesive converting, liner exchange and sustainable release applications
75 micron PCR PET release liner18-30 gf/in release film
EC-PT-RL-214Product grade
75 µm Blue PCR-PET Release Liner — 30-50 gf/in releaseSpecified grade
75 µm blue PCR-PET / release coatingRelease force 30-50 gf/in; typical source value, approved ECLEAR TDS governs
Adhesive converting, liner exchange and sustainable release applications
75 micron PCR PET release liner30-50 gf/in release film
EC-PT-RL-215Product grade
75 µm Blue PCR-PET Release Liner — 40-60 gf/in releaseSpecified grade
75 µm blue PCR-PET / release coatingRelease force 40-60 gf/in; typical source value, approved ECLEAR TDS governs
Adhesive converting, liner exchange and sustainable release applications
75 micron PCR PET release liner40-60 gf/in release film
EC-PT-PU-1xxProduct series
Regular PU Protective-Film PlatformTechnical review
PET carrier / PU adhesivePlatform; 60-85 µm; high transmission, low haze, clean removal
Display-module shipment protection
EC-PT-PU-2xxProduct series
Medium/High-Adhesion PU Protective-Film PlatformTechnical review
PET carrier / PU adhesivePlatform; 60-85 µm; film surface resistivity 10^8 Ω; tear voltage <500 V
Electronics module protection
EC-PT-PU-3xxProduct series
Anti-Static PU Protective-Film PlatformTechnical review
PET carrier / anti-static PU adhesivePlatform; 60-85 µm; adhesive resistivity 10^9 Ω; tear voltage <500 V
ESD-sensitive module protection
EC-PT-PU-4xxProduct series
Low Tear-Voltage PU Protective-Film PlatformTechnical review
PET carrier / low-charge PU adhesivePlatform; 60-85 µm; tear voltage <150 V
ESD-sensitive display protection
EC-PT-TL-101Product grade
Hardcoated Triple-Layer Screen FilmSpecified grade
Removable PET / hardcoated PET / silicone adhesive / PET liner120 µm; T≥90%; haze≤1%; peel 2 gf/24 mm; scratch-resistant surface
Screen protection and tempered-glass lamination
triple layer screen protectorhardcoat PET film
EC-PT-TL-102Product grade
Air-Venting Triple-Layer Screen FilmSpecified grade
Removable PET / optical PET / air-venting silicone adhesive / PET liner116 µm; T≥88%; haze≤1%; peel 2 gf/24 mm
Screen protection requiring fast air evacuation
air venting screen protection film
EC-PT-AB-101Product grade
Regular-Glass AB Protective FilmSpecified grade
PET carrier / acrylic adhesive side A / silicone adhesive side B / liners115 µm; A peel 800±400; B peel 2-8 gf/24 mm
Tempered-glass protective-film lamination
AB protective filmtempered glass lamination film
EC-PT-AB-102Product grade
2.5D Screen AB Protective FilmSpecified grade
PET carrier / high-bond acrylic side / silicone air-release side / liners180-195 µm; A peel >1800; B peel 5-8 gf/24 mm
2.5D screen protection
2.5D screen protective filmhigh adhesion AB film
EC-PT-AS-101Product grade
75 µm Anti-Splinter FilmSpecified grade
Removable PET protection film / hardcoat / high-transmittance PET / OCA / PET release liner75 µm; T≥90%; haze≤1%; peel≥1600 gf/24 mm
Cover-glass shatter retention
anti splinter filmglass shatter protection film
EC-PT-AS-102Product grade
110 µm Anti-Splinter FilmSpecified grade
Removable PET protection film / hardcoat / high-transmittance PET / OCA / PET release liner110 µm; T≥90%; haze≤1%; peel≥1800 gf/24 mm
Cover-glass shatter retention
110 micron shatterproof film
EC-PT-AS-103Product grade
150 µm High-Adhesion Anti-Splinter FilmSpecified grade
Removable PET protection film / hardcoat / high-transmittance PET / OCA / PET release liner150 µm; T≥90%; haze≤1%; peel≥2000 gf/24 mm
High-retention cover-glass reinforcement
150 micron anti splinter film
EC-PT-DF-101Product grade
125 µm Deco Anti-Splinter FilmSpecified grade
Removable PE protection film / surface-primed optical PET / OCA / release liner125 µm; primer supports UV transfer, electroplating and brushing; peel≥17 gf/24 mm
Cover-glass decoration and reinforcement
cover glass decoration filmUV transfer primer PET
EC-PT-DF-102Product grade
188 µm Deco Anti-Splinter FilmSpecified grade
Removable PE protection film / surface-primed optical PET / OCA / release liner188 µm; primer supports decoration processes; peel≥18 gf/24 mm
Cover-glass decoration and reinforcement
188 micron cover glass deco film
Protection, release control and retained cover-glass functions.
01Temporary protection films shield polarizers and display surfaces during converting, shipment and assembly, then peel away at the specified step. Screen-protector laminates, anti-splinter films and decorative films retain their functional layers in the finished assembly; only their designated protection and release liners are removed.
02Release liners provide a controlled separation interface for pressure-sensitive adhesive processing. Silicone, fluorinated and silicone-free surfaces are not interchangeable: the adhesive chemistry, coating side, reference tape, dwell, peel angle and speed must be defined together.
03Optical cleanliness is a system property. Base-film quality, coating uniformity, antistatic behavior, roll direction, winding and packaging can all affect particles, impressions and downstream lamination yield.
Performance framed around the application.
Benefits are evaluated on the intended substrate, process and finished assembly.
01
Separates optical protection, shatter retention and release-liner functions
02
Named thickness, color and release-force choices for PCR-PET liners
03
Antistatic and low-tear-voltage options for sensitive display modules
04
Cover-glass reinforcement and decorative-film constructions in the same selection system
From material definition to a qualified production stack.
Qualification links the material, converting route and customer production line.
01Define the protected surface
Record glass, polarizer, optical film or module finish, roughness and cleanliness limits.
02Match adhesion and release
Select PSA and release chemistry for the dwell, heat and removal sequence.
03Convert and package
Control coating side, roll direction, particles, winding tension and cut edges.
04Verify the final state
For temporary films, inspect after removal. For retained films, qualify adhesion, optical appearance and the required protective or decorative function after aging.
Evidence to collect before specification release.
Use representative substrates, process conditions and aging sequences.
- Initial and aged peel on the exact optical surface
- Release force with specified reference tape, dwell, angle and speed
- Residue, stain, fogging, particle and surface-imprint inspection
- Static generation and decay where display electronics require ESD control
- Dimensional stability and edge behavior through converting and shipment
Values require a method and an approved revision.
Typical values support selection; controlled specifications come from the approved TDS.
PropertyTypical / rangeControl
OpticsTransmission and haze by gradeMeasure on the complete laminate
Release / peelGrade- and side-specificState substrate, dwell, speed and angle
Static controlSurface and adhesive-side values by gradeVerify after converting
Thickness / colorGrade-specific base or laminate thickness and colorState whether protection and release liners are included
Typical values are not specifications. Final limits are subject to the approved ECLEAR TDS and customer validation.
Questions engineers ask before a line trial.
Resolve the material role, interfaces and process window before sampling.
Can one protection film cover every display surface?+
No. Bare glass, coated glass, polarizer, matte film and optical-sheet surfaces have different surface energy and damage sensitivity. Each interface and removal step needs qualification.
Why are release values not compared as a single number?+
Release force changes with the reference adhesive, dwell, temperature, peel angle, speed and liner orientation. A useful comparison must use the same complete method.
Can ECLEAR recommend a grade from an application description alone?+
A first shortlist is possible, but a production recommendation requires the substrate, layer construction, equipment, process sequence, test method and acceptance criteria. ECLEAR normally moves from requirement definition to laboratory matching, samples, line trial and a frozen approved specification.
Are the values shown on this page guaranteed specifications?+
No. Website values and constructions are selection guidance. Guaranteed limits, test conditions, packaging and shelf life are controlled only by the latest ECLEAR-approved TDS, quality agreement and customer qualification record.
Where this platform is evaluated.
Each application still requires stack-level compatibility and line validation.
PROCESS WINDOW
Parameters to control.
Record the complete process window, not only one nominal setting.
- Identify the protected surface, optical stack and exact removal point.
- Match release force to the adhesive chemistry, dwell and storage history.
- Control particles, static charge, web direction and liner-removal speed.
- Validate optics and cosmetic quality after die cutting, lamination and aging.
SELECTION QUESTIONS
What we need to know.
These inputs allow ECLEAR to narrow the grade and validation plan.
- Q1Is the film a temporary protector, permanent anti-splinter layer or release liner?
- Q2What are the substrate, optical and surface-energy requirements?
- Q3Which side releases first and under what line conditions?
- Q4Are antistatic, PCR-content, air-venting or decorative-primer functions required?
What a disciplined trial should expose early.
Early failure checks reduce scale-up risk and prevent false material comparisons.
!
Using release-force data without its reference tape and test method
!
Cropping, scratching or contaminating optical surfaces during conversion
!
Static discharge or high tear voltage at liner removal
!
Treating a family placeholder as a frozen production specification
Controlled technical documents.
Request the current revision for the selected ECLEAR grade and application.
PDFProduct BulletinAvailable after document-control reviewRequest →PDFSimplified TDSAvailable after document-control reviewRequest →PDFSDS & Compliance PackAvailable after document-control reviewRequest →
Typical constructions and application concepts are provided for material selection only. Availability, structure, performance and process conditions are grade-specific and subject to the latest ECLEAR-approved TDS, application testing and final customer qualification.
Related material systems.
Review adjacent materials that interact with this product in the same stack or process.
TECHNICAL CONSULTATION
Start a project ↗Validate the complete stack, not one isolated material.
Share the substrate, construction, process and acceptance criteria for a focused recommendation.
