Functional Films & Release Materials

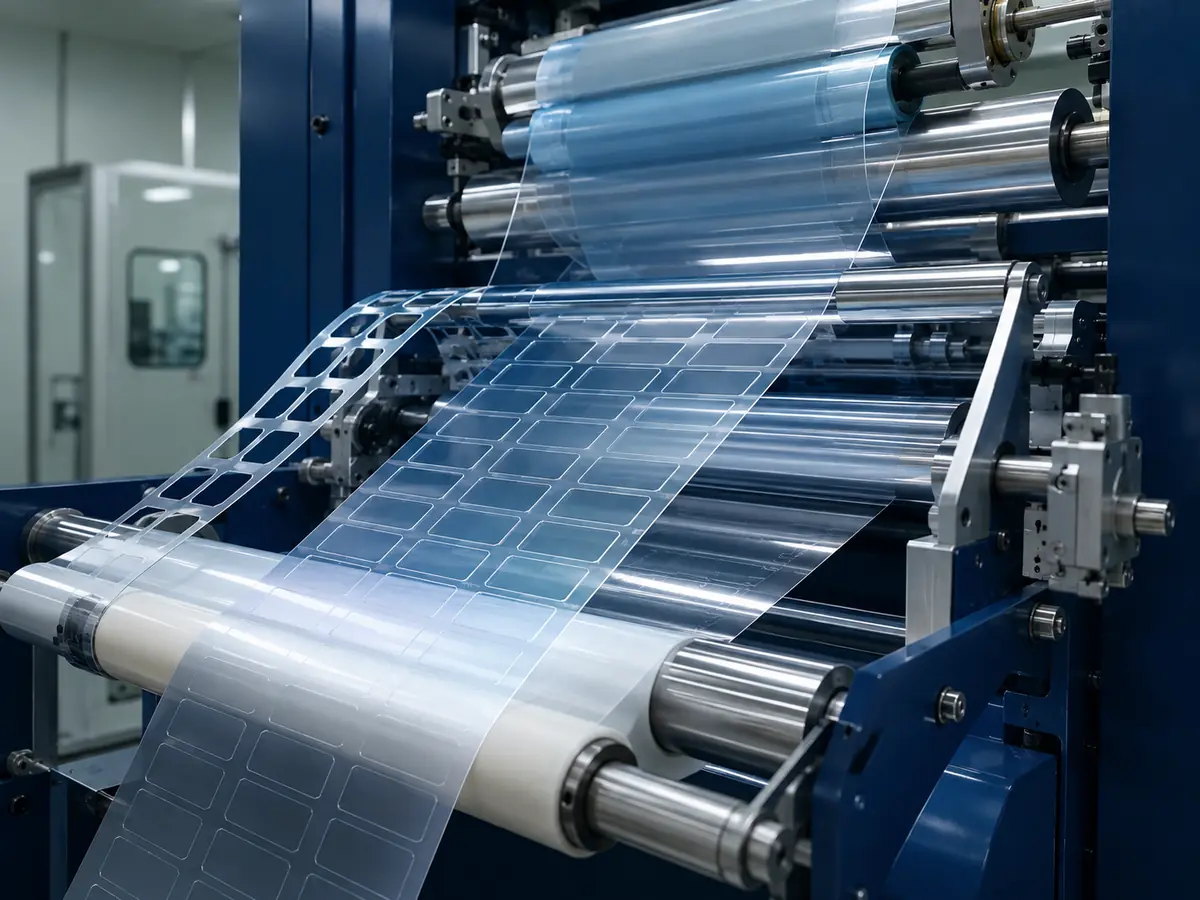

OCA Die-Cutting, Carrier & Release Solutions

A coordinated converting package for optically clear adhesive: dimensional support during die cutting, controlled waste pickup, liner exchange and clean sheet delivery. OCA is the permanent adhesive; EC-OC carriers, EC-WE waste films and EC-RS/RF/RN liners are process materials removed before final bonding.

TYPICAL CONSTRUCTION

What the material stack contains.

Read the layers in functional order; the exact construction remains grade-specific.

01OCA master roll with controlled light/heavy liners
02Micro-textured or smooth PET carrier with low-tack PSA
03Controlled-tack PET waste-stripping film
04Silicone, fluorinated or silicone-free release liner matched to adhesive chemistry

ECLEAR MODEL CATALOG

Named grades for technical selection.

Each ECLEAR model identifies a distinct material role and construction. Manufacturing cross-references remain controlled in the ECLEAR product master for traceability.

21 / 21 records

ECLEAR modelProduct / roleConstruction / typical windowApplications

EC-OC-101Product grade

50 μm Textured OCA Die-Cut Carrier FilmReference · confirm data

50 μm PET / 3 μm low-tack PSA / 50 μm release liner53 μm reported functional-film thickness (excluding the separate release liner); peel to PET 2–5 g/25 mm; micro-textured air-release surface

OCA die cutting, dimensional backing and sheet delivery

EC-OC-102Product grade

75 μm High-Stiffness Textured OCA Carrier FilmReference · confirm data

75 μm PET / 3 μm low-tack PSA / 50 μm release liner78 μm reported functional-film thickness (excluding the separate release liner); peel to PET 2–5 g/25 mm; thicker PET for greater converting support

OCA die cutting, complex profiles and higher-stiffness sheet handling

EC-WE-101Product grade

Ultra-Low-Tack OCA Waste-Stripping FilmReference · confirm data

38 μm PET / 10 μm water-based acrylic PSA; linerless48 μm total; peel 3.5 ± 1.5 g/25 mm

Light PET and OCA die-cut waste pickup

EC-WE-102Product grade

Low-Tack OCA Waste-Stripping FilmReference · confirm data

38 μm PET / 10 μm water-based acrylic PSA; linerless48 μm total; peel 6.5 ± 1.5 g/25 mm

General PET and OCA matrix stripping

EC-WE-103Product grade

Medium-Tack Release-Material Waste FilmReference · confirm data

38 μm PET / 10 μm water-based acrylic PSA; linerless48 μm PET-plus-adhesive thickness; linerless; peel 16 ± 5 g/25 mm

Waste stripping from release films and release papers

EC-RS-101Product grade

25 μm Ultra-Light Silicone Release LinerReference · confirm data

25 μm PET / silicone release coatingSpecified acrylic reference-tape release <3.5 g/25 mm at 20 min and <4 g/25 mm at 24 h; residual adhesion ≥85% after the specified reference-tape aging method at 70°C for 20 h

Ultra-light side of OCA, AB-adhesive and coating liner systems

EC-RS-102Product grade

25 μm Light Silicone Release LinerReference · confirm data

25 μm PET / silicone release coatingSpecified acrylic reference-tape release 3–6 g/25 mm at 20 min and 4–7 g/25 mm at 24 h; residual adhesion ≥85%

Light-release OCA, AB-adhesive and die-cut liner systems

EC-RS-103Product grade

50 μm Light Silicone Release LinerReference · confirm data

50 μm PET / silicone release coatingSpecified acrylic reference-tape release 7–12 g/25 mm at 20 min and 10–15 g/25 mm at 24 h; residual adhesion ≥85%

OCA coating, AB-adhesive protection and frame-adhesive die cutting

EC-RS-104Product grade

50 μm High-Residual-Adhesion Release LinerReference · confirm data

50 μm PET / high-stability silicone release coatingSpecified acrylic reference-tape release 9–14 g/25 mm at 20 min and 12–17 g/25 mm at 24 h; residual adhesion >90%

Stable light-to-medium release for OCA and specialty adhesive conversion

EC-RS-105Product grade

50 μm Medium-Release Silicone LinerReference · confirm data

50 μm PET / silicone release coatingSpecified acrylic reference-tape release 15–20 g/25 mm at 20 min and 18–23 g/25 mm at 24 h; residual adhesion ≥85%

Medium-release side of OCA, AB-adhesive and frame-adhesive liner systems

EC-RS-106Product grade

50 μm Medium-Heavy Silicone Release LinerReference · confirm data

50 μm PET / silicone release coatingSpecified acrylic reference-tape release 25–35 g/25 mm at 20 min and 30–40 g/25 mm at 24 h; residual adhesion ≥85%

Medium-heavy release for OCA liner pairs and industrial adhesive conversion

EC-RS-107Product grade

75 μm Heavy Silicone Release LinerReference · confirm data

75 μm PET / silicone release coatingSpecified acrylic reference-tape release 50–70 g/25 mm at 20 min and 50–75 g/25 mm at 24 h; residual adhesion ≥85%

Heavy-release OCA, frame-adhesive and coating liner systems

EC-RS-108Product grade

75 μm Higher-Release Silicone LinerReference · confirm data

75 μm PET / silicone release coatingSpecified acrylic reference-tape release 60–80 g/25 mm at 20 min and 65–90 g/25 mm at 24 h; residual adhesion ≥85%

Higher-release liner side for OCA and pressure-sensitive adhesive conversion

EC-RS-109Product grade

95 μm High-Residual Heavy Release LinerReference · confirm data

95 μm PET / high-stability silicone release coatingSpecified acrylic reference-tape release 70–90 g/25 mm at 20 min and 80–110 g/25 mm at 24 h; residual adhesion ≥90%

Heavy OCA liner side and applications requiring a stiffer, stable release substrate

EC-RS-110Product grade

95 μm Extra-Heavy Silicone Release LinerReference · confirm data

95 μm PET / extra-heavy silicone release coatingSpecified acrylic reference-tape release 105–135 g/25 mm at 20 min and 120–160 g/25 mm at 24 h; residual adhesion ≥85%

Extra-heavy release for OCA and industrial adhesive liner combinations

EC-RS-111Product grade

95 μm Ultra-Heavy Silicone Release LinerReference · confirm data

95 μm PET / ultra-heavy silicone release coatingSpecified acrylic reference-tape release 130–170 g/25 mm at 20 min and 150–200 g/25 mm at 24 h; residual adhesion ≥85%

Highest-release side of demanding OCA or industrial adhesive liner systems

EC-RS-112Product grade

50-Series Stable Release Liner — To Be ConfirmedReference · confirm data

PET / silicone release coating; detailed stack not stated in the source deckData confirmation required: listed on slide 45 but absent from the property table; may be a separate grade or a typographical conflict with ST5012-H

Proposed for AB-adhesive and OCA liner service, subject to current TDS

EC-RS-113Product grade

95-Series Release Liner — To Be ConfirmedReference · confirm data

PET / silicone release coating; detailed stack not stated in the source deckData confirmation required: listed on slide 45 but absent from the property table; do not treat it as ST9580-H

Proposed for AB-adhesive and OCA liner service, subject to current TDS

EC-RF-101Product grade

25 μm Fluorinated PET Release LinerReference · confirm data

25 μm PET / fluorinated release coatingSource reference-tape release 8–12 g/25 mm at 20 min and 8–15 g/25 mm at 24 h; residual adhesion ≥90% after 70°C for 20 h; exact reference tape, adhesive chemistry and test procedure require confirmation

Release interface for qualified silicone-PSA tapes, films and PEN/silicone constructions

EC-RF-102Product grade

Fluorinated PET Release Liner — Separate Grade To Be ConfirmedReference · confirm data

25 μm PET / fluorinated release coating according to the 2018 source tableSource reference-tape release 8–12 g/25 mm at 20 min and 8–15 g/25 mm at 24 h; residual adhesion ≥90%. Data confirmation required: the source deck discloses no verified difference from the adjacent grade, so do not claim greater thickness or stiffness; exact reference tape, adhesive chemistry and test procedure require confirmation

Release interface for qualified silicone-PSA systems, pending current-grade differentiation

EC-RN-101Product grade

50 μm Silicone-Free PET Release LinerReference · confirm data

50 μm PET / silicone-free release coatingSource reference-tape release 30–50 g/25 mm at 20 min; 24 h value not stated; residual adhesion ≥90% after 70°C for 20 h; exact reference tape, adhesive chemistry and test procedure require confirmation

Optical and electronic converting processes that restrict silicone transfer

HOW IT WORKS

Temporary films control a permanent adhesive through converting.

01OCA is the permanent optical adhesive. Carriers, waste-stripping films and release liners are temporary process materials that stabilize it until the correct removal step. Confusing these roles can lead to the wrong drawing, liner sequence or customer instruction.

02During rotary or flatbed die cutting, the carrier controls dimensions and supports the soft adhesive. A waste film must lift the intended matrix without lifting finished parts. Release liners must provide a stable light/heavy relationship after dwell, storage and thermal history.

03Release force is not an intrinsic number without a method. Reference tape, roller, dwell, temperature, humidity, peel angle and speed must accompany every reported result.

KEY BENEFITS

Performance framed around the application.

Benefits are evaluated on the intended substrate, process and finished assembly.

Separates permanent OCA from temporary converting materials

Supports dimensional control and clean liner exchange

Helps manage adhesive edge squeeze, particles and trapped air

Release system selected to the actual acrylic or silicone adhesive

APPLICATION WORKFLOW

From material definition to a qualified production stack.

Qualification links the material, converting route and customer production line.

01Map every layer

Identify OCA, light/heavy liner, carrier, waste film and the removal order.

02Stabilize cutting

Set web tension, lamination pressure, die depth and registration.

03Strip & relaminate

Balance waste pickup with part retention and clean liner exchange.

04Deliver clean sheets

Qualify particles, edge deformation, release aging and customer handling.

VALIDATION PLAN

Evidence to collect before specification release.

Use representative substrates, process conditions and aging sequences.

Carrier peel and dimensional stability through the die-cut sequence
Waste-stripping margin across web speed and stripping geometry
Light/heavy release after dwell, heat aging and storage
Particle, residue, silicone-transfer and static-control inspection
OCA edge shape, bubble performance and liner orientation on the customer line

TYPICAL PROPERTIES

Values require a method and an approved revision.

Typical values support selection; controlled specifications come from the approved TDS.

PropertyTypical / rangeControl

CarrierPET / low-tack PSAThickness, texture and peel by grade

Waste filmControlled-tack acrylic PSAMatch to waste and web tension

ReleaseSilicone, fluorinated or silicone-freeState reference tape and test conditions

RoleTemporaryRemoval step must appear on drawing/SOP

Typical values are not specifications. Final limits are subject to the approved ECLEAR TDS and customer validation.

TECHNICAL FAQ

Questions engineers ask before a line trial.

Resolve the material role, interfaces and process window before sampling.

Is EC-OC an optically clear adhesive?+

No. EC-OC identifies the OCA carrier family. EC-OA identifies permanent OCA optical adhesive. The different codes intentionally prevent a process carrier from being confused with the adhesive itself.

Can silicone release liner be used with every OCA?+

No. Acrylic and silicone adhesive systems can require different release chemistries. Fluorinated or silicone-free liners are selected only after compatibility and contamination review.

Can ECLEAR recommend a grade from an application description alone?+

A first shortlist is possible, but a production recommendation requires the substrate, layer construction, equipment, process sequence, test method and acceptance criteria. ECLEAR normally moves from requirement definition to laboratory matching, samples, line trial and a frozen approved specification.

Are the values shown on this page guaranteed specifications?+

No. Website values and constructions are selection guidance. Guaranteed limits, test conditions, packaging and shelf life are controlled only by the latest ECLEAR-approved TDS, quality agreement and customer qualification record.

RECOMMENDED APPLICATIONS

Where this platform is evaluated.

Each application still requires stack-level compatibility and line validation.

PROCESS WINDOW

Parameters to control.

Record the complete process window, not only one nominal setting.

Map every liner and process film to the exact removal step.
Validate unwind, lamination pressure, die depth, web tension and stripping angle.
Test release after representative dwell, aging and storage.
Approve particles, residue, adhesive deformation and bubble performance on the customer line.

SELECTION QUESTIONS

What we need to know.

These inputs allow ECLEAR to narrow the grade and validation plan.

Q1What is the OCA chemistry, thickness and original liner construction?
Q2Which face is light release and which is heavy release?
Q3What die-cut sequence, web speed and waste geometry are used?
Q4What cleanliness, static-control and sheet-delivery requirements apply?

FAILURE RISKS

What a disciplined trial should expose early.

Early failure checks reduce scale-up risk and prevent false material comparisons.

Confusing the permanent OCA with its temporary carrier

Waste film lifting finished parts

Release-force drift after heat or aging

Silicone transfer or contamination in a restricted process

DOWNLOADABLE DOCUMENTS

Controlled technical documents.

Request the current revision for the selected ECLEAR grade and application.

PDFProduct BulletinAvailable after document-control reviewRequest →PDFSimplified TDSAvailable after document-control reviewRequest →PDFSDS & Compliance PackAvailable after document-control reviewRequest →

Typical constructions and application concepts are provided for material selection only. Availability, structure, performance and process conditions are grade-specific and subject to the latest ECLEAR-approved TDS, application testing and final customer qualification.
